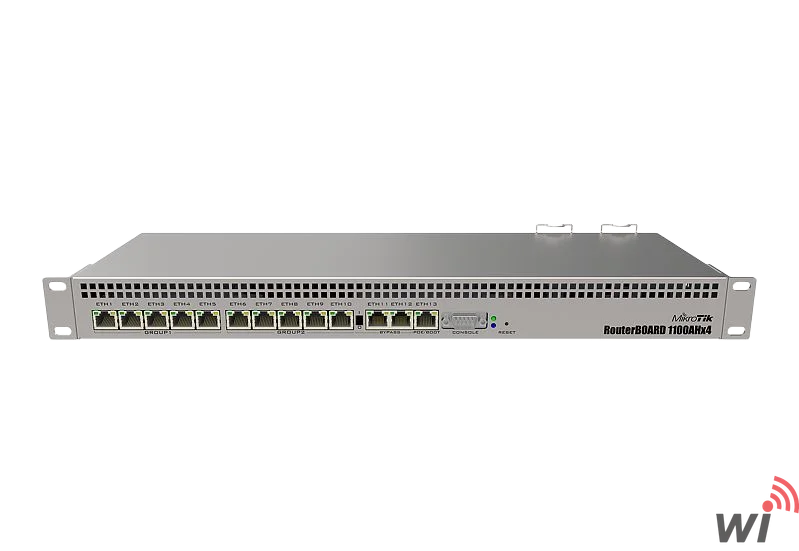

Mikrotik Router Board RB1100AHx4

Overview: The Mikrotik RB1100AHx4 is a high-performance rackmount router designed for robust network management. It features 13 Gigabit Ethernet ports and a quad-core 1.4 GHz Cortex A15 processor. Compatible with RouterOS, it supports IPsec hardware acceleration for secure high-speed connections. Dual redundant power supplies and a wide operating temperature range ensure reliable operation in various environments. Additional features include a microSD slot and RS232 serial console port for easy management. Key Features: - Quad-core 1.4 GHz Cortex A15 processor (Annapurna Alpine AL21400) - 13 Gigabit Ethernet ports - IPsec hardware acceleration supporting up to 2.2 Gbps - Dual redundant power supplies (AC and DC inputs, PoE support) - 1 GB RAM and 128 MB NAND storage - MicroSD card slot and RS232 serial console port - Wide operating temperature range (-40°C to +70°C) - 20 W maximum power consumption - PCB temperature, voltage, and current monitors Technical Summary: CPU model: AL21400 CPU cores: 4 CPU frequency: 1.4 GHz RAM capacity: 1 GB Storage: 128 MB NAND Ethernet ports: 13 Power consumption: 20 W Dimensions (WxDxH): 443 x 148 x 44 mm Operating temperature: -40°C to +70°C PoE input support: 802.3at/af Power inputs: 2 AC (100-240V), 2 DC (20-57V, PoE-IN, 2-pin terminal) Serial port: RS232 Operating system: RouterOS Switch chip model: RTL8367 Package Contents: - K10 screw set - Rack mounting ears - 2 IEC power cables
