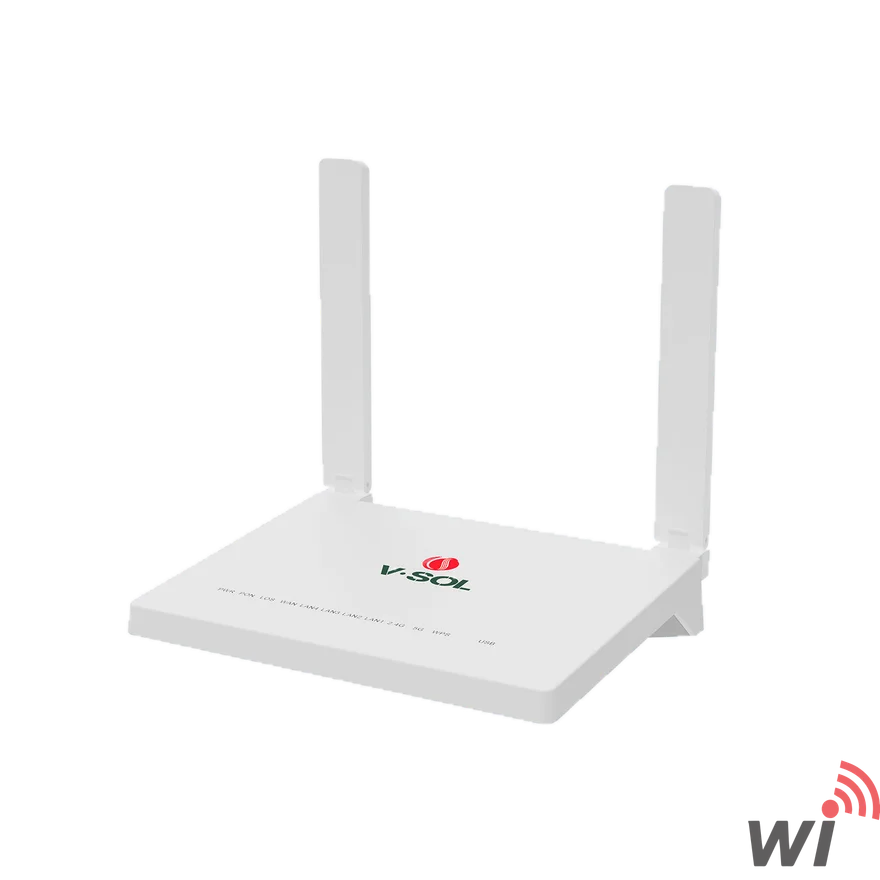

V-SOL WIFI-6 DualBand xPON Router V2804AX-3000

Product Description:

V2804AX (4GE+WiFi6 + USB3.0 XPON ONT), designed to meet the needs of fixed network operators for FTTH and triple play services. Based on a high-performance YonaSet solution, this ONT supports XPON dual mode technology that includes EPON and GPON. Additionally, it supports IEEE802.11b/g/n/ac, ax WiFi technology and other Layer 2/3 functions, providing data services for carrier-class FTTH applications. The ONT supports OAM/OMCI protocols and allows various services to be configured or managed via VSOL OLT. This device offers high reliability and easy management, ensuring QoS guarantees for different services and compliance with international technical standards such as IEEE802.3ah, ITU-T G.984.

Basic Features:

• High-Speed Internet: 4 Gigabit Ethernet ports for high-speed wired connections.
• Advanced Wireless Connectivity: Dual-band WiFi6 (2.4GHz and 5GHz) support for total speeds up to 1.5 Gbps.
• USB 3.0 Support: High-speed USB 3.0 port for external storage devices or printers.
• Dual Mode Support: Works with EPON and GPON technologies.
• Easy Management: Management support via OAM/OMCI, Telnet, Web, and TR069.

Technical Features:

• Dimensions: 178mm x 120mm x 30mm (U x G x Y)
• Weight: 420g
• Operating Temperature: -10°C ~ +55°C
• Operating Humidity: 5% ~ 95% (non-condensing)
• Power Supply: DC 12V/1.5A
• Power Consumption: 12W
• PON Interface: 1 XPON port (EPON PX20+ and GPON Class B+), SC single mode, SC/APC connector
• User Interface: 4 Gigabit Ethernet ports, 1 USB 3.0 port
• WiFi Interface: IEEE802.11b/g/n/ac compatible; 2.4GHz 2x2, 5.8GHz 2x2, 5dBi antenna, up to 1.167Gbps speed, multiple SSID support
